Hole to Hole Clearance

Created: December 16, 2024 | Updated: August 23, 2018

Rule category: Manufacturing

Rule classification: Binary

Summary

This rule ensures checking of manufacturing compatibility of drilled holes. When enabled, it will flag any multiple vias / pads at the same location, or overlapping pad / via holes. There is also an option to determine whether stacked micro vias are allowed or not.

Constraints

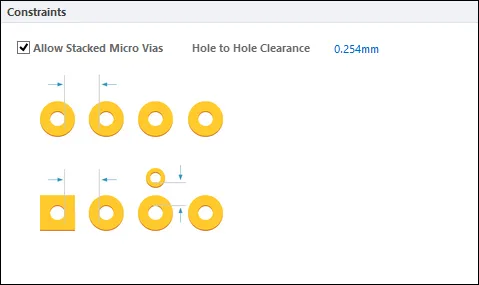

Default constraints for the Hole To Hole Clearance rule.

  • Allow Stacked Micro Vias - enable this option to allow micro vias to be stacked.
There are many advantages of using micro vias:
  • Such a via requires a much smaller pad, which helps to reduce the board size and weight.
  • They allow IC components to be more densely placed. This could result in the use of a smaller PCB, which would bring a welcome reduction in total board manufacturing costs.
  • They facilitate improved electrical performance due to shorter pathways.
  • Hole To Hole Clearance - the value for the minimum permissible clearance between pad/via holes in the design.

How Duplicate Rule Contentions are Resolved

All rules are resolved by the priority setting. The system goes through the rules from highest to lowest priority and picks the first one whose scope expressions match the object(s) being checked.

Rule Application

Online DRC and Batch DRC.
