Additional New Features and Enhancements

Added support for hierarchical schematics to Eagle Importer

Hierarchical schematics can now be imported into CircuitStudio using the Eagle Importer, allowing designers to better integrate imported designs. The use of schematic hierarchy also allows for more easily reusing design pieces.

Top/Bottom Overlay Improvements

When importing Eagle files to PCB, some designs have multiple layers added to the silkscreen. These layers now remain separate in the PCB Editor.

Added NetClass support to HoleSize rule

The addition of NetClass support to the HoleSize design rule allows for drill size values specified for NetClass for HoleSize rule to be brought in when importing from Eagle.

Added support for multi-line text outputs for PCB

Support has been added for multi-line text outputs on PCB documents, enabling these text strings to be displayed correctly in projects imported from Eagle.

Added Single Layer Mode toggle options

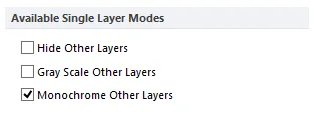

Single layer mode toggle options have been added to the PCB Editor - Display page of the Preferences dialog. Designers can use the Shift+S keys to cycle between available modes.

Color Print Options Added for Generated Outputs

Designers now how more flexibility when printing generated output. The Output Properties dialog now contains a Color Set region which allows designers to select whether output is printed in Mono, Color, or Grey. Color is selected by default.
