Releasing Your Design Locally from Altium Designer

As well as the managed (Online) release mode, the Project Releaser also provides for local, unmanaged (Offline) releases. Typically, this mode of releasing would be used if you don't use a Workspace, or if you cannot be currently connected to your Workspace. And while the Project Releaser will automatically determine the mode where possible, or offer options where that is not so clear cut, you can always force the use of Offline mode. The latter is performed by setting the Release Target on the Release Options tab of the Project Release Options dialog (click the button while at Stage 1 of the release process) to one of the following:

• Unmanaged - Folder: set this option to release generated data to a local folder. The root folder path is specified on the Output Path tab of the dialog. By default, this is set to [OutputPath] (using the path defined in the Output Path field on the Options tab of the Project Options dialog).

• Unmanaged - Zip: set this option to release generated data to a local folder. The data will be packed into a single Zip file. The Zip path/name is specified on the Output Path tab of the dialog. By default, this is set to [OutputPath][ProjectName].zip (using the path defined in the Output Path field on the Options tab of the Project Options dialog).

You can quickly tell if the Project Releaser is configured in its Offline mode by:

• The title of Stage 1 reading Configure Local Release, instead of Configure Server Release (when in Online mode).
• The title of Stage 5 reading Pack Data, instead of Upload Data (when in Online mode).

The Project Releaser configured in a local, unmanaged (Offline) mode.

The release process is very similar to that described for the managed (Online) release mode, just targeting the release of data to local folders instead. Rather than repeating the information described earlier, below is the outline of the stages involved, highlighting any differences.

Offline Stage 1 – Configure Local Release

Here is where you configure the data that you want to be generated from your design project. Source data is always included as part of a release, and it can include fabrication, assembly (base and/or variations), and any custom data, as required.

For each data set to be generated, you need to specify a target folder where that data will be stored. Default folder names are used as follows:

• Source Data – will be generated in the Sources folder.

• Fabrication Data (for a PCB project only) – will be generated in the Fabrication folder.

• Assembly Data for no variant – will be generated in the Assembly folder.

• Assembly Data for <VariantName> (for a PCB project only) – will be generated in the Assembly <VariantName> folder.

• Custom Data <Custom - n> – will be generated in the <Custom - n> folder.

You can of course change this default naming to suit your requirements. To do so, click on a current Target Folder entry, enter the desired new name for the folder, and press Enter.

With the data sets to be created as part of the release configured as required, click the button at the bottom-right of the view to proceed.

The button has two states. These differ slightly between the two unmanaged release options:

• Unmanaged - Folder: clicking the button will launch the standard Prepare command. This will proceed with the release up to the Review Data stage – allowing you to essentially double-check that all is in order before releasing to the target folders. If you don't want to pause for review, use the drop-down menu associated with the button and choose the Prepare & Explore command.
• Unmanaged - Zip: clicking the button will launch the standard Prepare command. This will proceed with the release up to the Review Data stage – allowing you to essentially double-check that all is in order before packing the data into the Zip file. If you don't want to pause for review, use the drop-down menu associated with the button and choose the Prepare & Pack command.

Several pre-release checks are now performed, including:

• Ensure that the project and all files have been saved.

• Ensure that the project and all relevant file(s) are committed to VCS if applicable.

• Ensure that each enabled data item has been given a target folder.

If any issues are found, you will be offered solutions with which to resolve them (such as saving locally modified files and committing to VCS).

The Source Data is generated at this stage – with a snapshot of the source design project files released to the target folder.

Offline Stage 2 – Validate Project

After Stage 1 completes without issue, this next stage of the release process is run automatically when one or more Validation-type reports are detected in assigned OutJob file(s). All defined validation output generators, defined in an Output Job file assigned to the data item being released, are run. This stage runs the same as it does when releasing in managed (Online) mode.

Clicking at the bottom-right of the view will stop the release process.

Offline Stage 3 – Generate Data

After Stage 2 completes without issue, this next stage of the release process is run automatically. This is where all other outputs – defined in the OutJob file(s) assigned to the included Data Items – are run, to generate the data to be released into the relevant target folders. This stage runs the same as it does when releasing in managed (Online) mode.

Clicking at the bottom-right of the view will stop the release process.

Offline Stage 4 – Review Data

With all validation checks passed, and output data generated, this stage of the release process allows you to review the generated data. This stage behaves in much the same way as when releasing in managed (Online) mode.

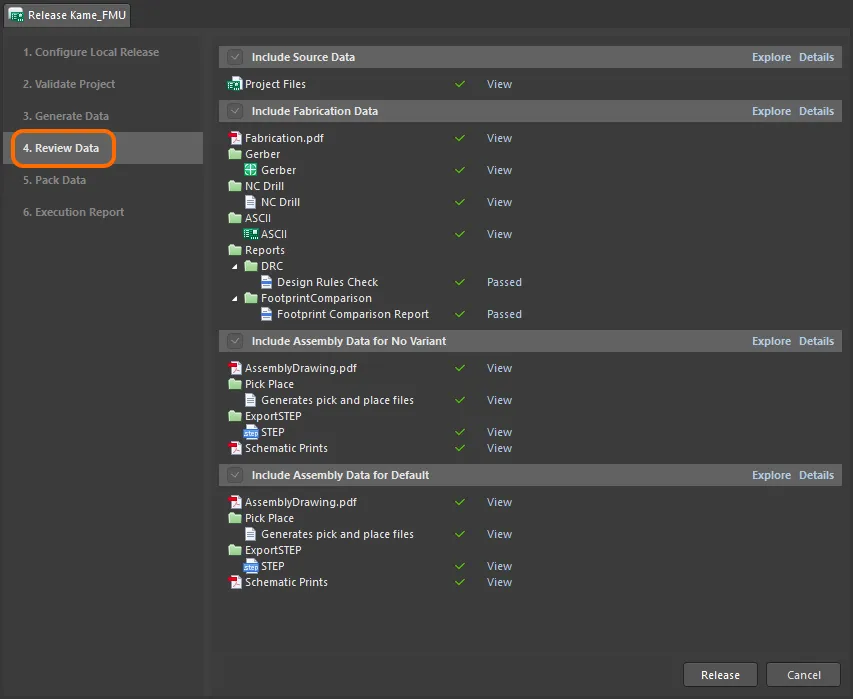

Review generated data, checking that all is as it should be, prior to committing to the release, and sending the data to the targeted folder(s), or packing the data into the localized zip file, in accordance with the unmanaged release option chosen.

In the compact view of the generated data, click a View link to open the associated data file or file set, either within the relevant editor within Altium Designer (e.g., the CAM editor) or within the relevant external application (e.g., Microsoft Excel). In the detailed view, double-click on an entry to view just that file.

If, after reviewing the data, you find you need to make modifications, click the button at the bottom-right of the view. A confirmation dialog will appear, alerting you that all generated data will be lost. Click OK to cancel the release; you will be returned to Stage 1 of the process.

If the generated data all looks good, proceed with the release by clicking the button (also at the bottom-right of the view). What happens next depends on the target release option you are using:

• Unmanaged - Folder: the generated files will be released to the target folder(s), and the process will jump directly to the last stage to view the Execution Report.

• Unmanaged - Zip: the process will proceed to the next stage – Pack Data.

Offline Stage 5 – Pack Data

After confirming the release in the previous stage, this next stage is automatically entered and involves the data being packed into a single, localized zip file. The Zip path/name is specified on the Output Path tab of the Project Release Options dialog. By default, this is set to [OutputPath][ProjectName].zip (using the path defined in the Output Path field on the Options tab of the Project Options dialog).

Offline Stage 6 – Execution Report

This is the final stage of the process, providing a summary of the release.

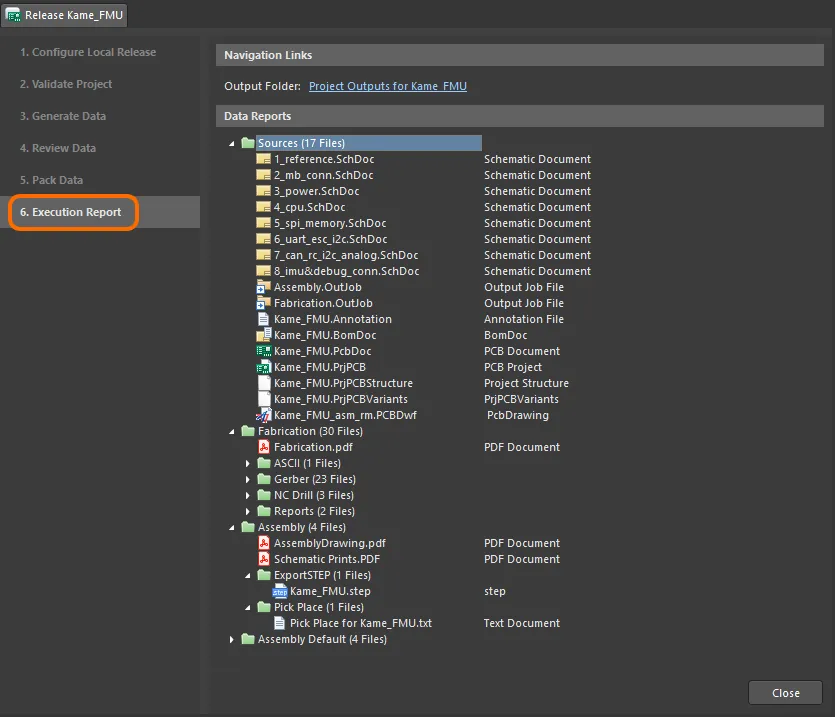

The final report for the release, as shown when using the Unmanaged - Folder release target. Hover over the image to see the equivalent with the release target set to Unmanaged - Zip.

Use the Navigation Link provided to quickly explore (in Windows File Explorer) to the output folder or packed zip file, respectively.

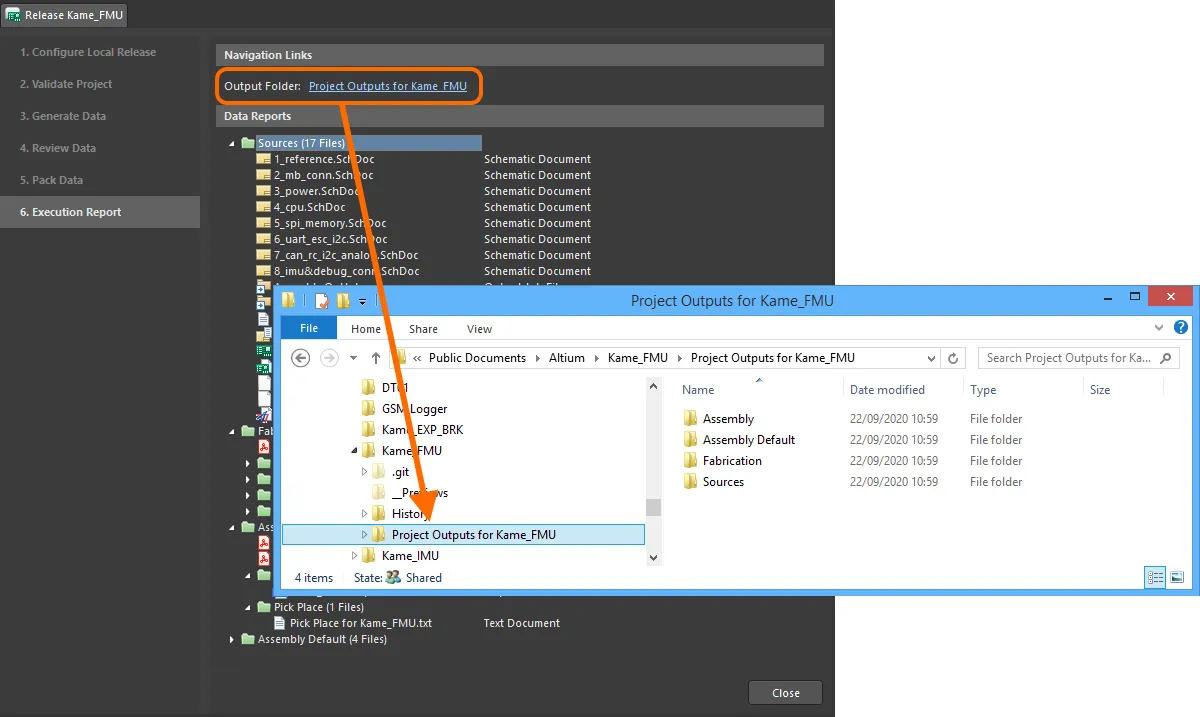

Quickly browse to the output folder of locally released data, directly from the Execution Report stage of the interface. Hover over the image to see an example of browsing to the packaged zip file of locally released data.
