Routing Layers

Created: December 16, 2024 | Updated: August 23, 2018

Rule category: Routing

Rule classification: Unary

Summary

This rules specifies which layers are allowed to be used for routing.

Constraints

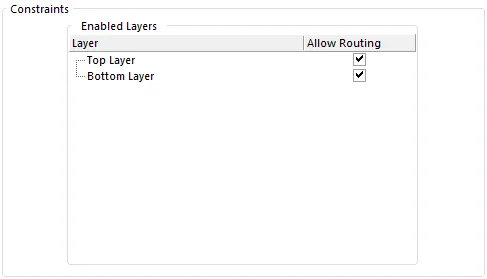

Default constraints for the Routing Layers rule.

  • Enabled Layers – each of the signal layers currently defined for the design – as defined by the layer stackup – are listed. Use the associated Allow Routing option to enable/disable routing on a layer, as required.

How Duplicate Rule Contentions are Resolved

All rules are resolved by the priority setting. The system goes through the rules from highest to lowest priority and picks the first one whose scope matches the object(s) being checked.

Rule Application

During interactive routing and autorouting.

The rule is also obeyed by the Online DRC and Batch DRC.

Notes

When using the Autorouter, the routing direction for each enabled signal layer in the design is defined as part of the Situs Autorouter setup. Directions are specified in the Layer Directions dialog, which is accessed by clicking the Edit Layer Directions button in the Situs Routing Strategies dialog.

Setting the routing direction for a layer to Any can affect performance when autorouting. More efficient use of board area may be achieved by choosing a specific routing direction.
