PCB Editor - DRC Violations Display

Parent page: PCB Preferences

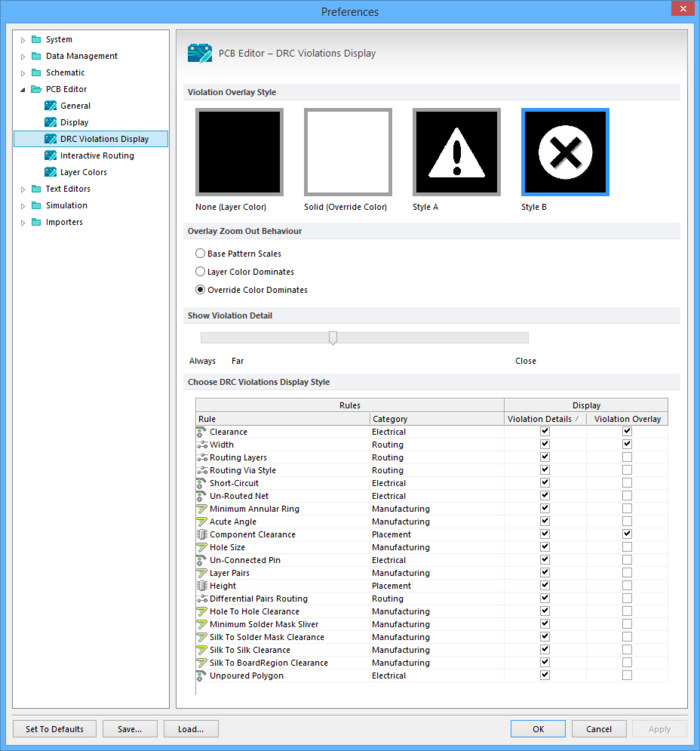

The PCB Editor - DRC Violations Display page of the Preferences dialog

Summary

The PCB Editor – DRC Violations Display page of the Preferences dialog provides a range of controls that determine the visual functionality of the DRC Violations Display feature within the PCB workspace.

Access

The PCB Editor – DRC Violations Display page is part of the main Preferences dialog (File |

) and is accessed by clicking the DRC Violations Display entry under the PCB Editor folder in the left hand pane of the dialog.

Options/Controls

Violation Overlay Style

Select the visual overlay style to specify how violations appear in the PCB workspace. Choose from the following options:

  • None (Layer Color) - the DRC override color is ignored, leaving only the default layer color visible.
  • Solid (Override Color) - the DRC override color is used, totally overriding the default layer color.
  • Style A - the DRC override color is used in the display of an exclamation-type pattern, leaving the default layer color also visible.
  • Style B - the DRC override color is used in the display of a cross-type pattern, leaving the default layer color also visible.
The override color (the color associated with the display of a violation overlay) is that defined for the DRC Error Markers system color on the Board Layers and Colors tab of the View Configurations dialog.

Overlay Zoom Out Behavior

Use these options to determine how the overlays are displayed when you zoom out:

  • Base Pattern Scales - select to scale the base pattern as you zoom out.
  • Layer Color Dominates - select to have the assigned layer color become more dominant the further you zoom out until the color is not noticeable.
  • Override Color Dominates - select to have the assigned net override color become more dominant the further you zoom out until the color is not noticeable.

Show Violation Detail

This option determines the zoom point at which the custom violation graphics for a violated design rule will be displayed. Setting the slider bar more towards Close will result in the violation details appearing when you are more 'zoomed in'. Conversely, to keep the details visible while zooming out to a greater extent, set the slider bar more towards Far. To keep the violation details displayed regardless of zoom level, set the slider bar to Always.

Choose DRC Violations Display Style

This region presents a grid allowing you to choose the display style used on a per-rule basis.

  • Enabling the Violation Details field for a rule type will use the associated custom violation graphics to display the DRC violations of that rule.
  • Enabling the Violation Overlay field will display the violations using the specified overlay style.

Right-click anywhere in the region to access a context menu, with commands to quickly enable or disable use of a violation display type for all rule types. You can also quickly enable the display of violations – detailed graphics or overlay styles – for only those rules currently being used in the design.

By default, the Violation Details display option is enabled for all rule types and the Violation Overlay display option is enabled only for Clearance, Width and Component Clearance rules.
Using the two display types together can prove useful in terms of providing a 'coarse' and 'fine' indication of violations. When zoomed out, the violation overlay can flag where a violation exists then zoom in to view the detail delivered by the associated custom violation graphic.
