Movement Tools

Parent page: Commands

The PCB editor includes a variety of movement tools to help you efficiently develop the board design.

Summary

Printed circuit board design is a highly-detailed and precise process. Objects are carefully placed to fulfill their mechanical and electronic requirements. To help with this, the PCB editor includes a variety of movement commands and behaviors. Unless it is locked, any object can be moved by clicking and dragging. To move multiple objects, they must be selected first so the software knows which objects need to be moved.

Details

As well as moving objects directly with the mouse, specific movement commands are available by clicking Tools | Arrange |

. A summary of each is given in the table below.

General notes on moving objects:

• Click and hold the mouse button to move a single object. The object will be held either by:
  • its reference point for a single reference point object such as a pad, via or component, or
  • a vertex for a track or polygonal-shaped object.
• Single objects are moved on the current snap grid. For multiple objects, the location where the selection set is held will be on the current snap grid.
• Click and hold requires the mouse button to be held down. Holding the mouse button down is not required if you use a Move menu command. The advantage of using a Move command is that arrow keys can be used to accurately move the object(s) in single grid increments. You can then hold Shift to step in 10 x grid increments.
• A set of selected objects can also be moved using the click and hold technique depending on which kind of object in the selection set is clicked. When multiple objects are moved using click and hold, the cursor will jump to the nearest grid point and then begin to move the selection set. Note that this held point may not be an object reference point. If positioning is critical, it is better to use the Move Selection command described below because you can move the cursor around until it snaps to an object reference point, such as the center of a pad, which then becomes the point by which the set of objects is held. In fact, it can help to place a temporary pad or via to help with the precise relocation of a set of selected objects.
• A set of selected tracks cannot be moved using the click and hold technique. In this situation, the Move Selection command must be used (unless there is a non-track object in the selection set to click and hold on).
• If multiple objects are moved, their position relative to each other is maintained.

Interactive Behavior while Moving Objects

The following commands are available while one or more objects are being moved:

• Press Tab to open the object's properties dialog (if only one object is being moved).
• Press Spacebar to rotate the object(s) counterclockwise around the movement reference point, or Shift + Spacebar for clockwise rotation. The default rotation increment is 90 degrees. The Rotation Step size can be changed in the PCB Editor - General page of the Preferences dialog.
• Press the X or Y key to flip the object(s) along the X or Y axes respectively.
• If the object being moved is a component, press L to flip it to the other side of the board. Do not use X or Y to flip components because the primitive objects within the component will not swap to appropriate bottom-side layers.
• Press Esc to abort the current movement action.

Summary of the Movement Commands

Command	Behavior
Move Object	Move the chosen object. After launching the command, the Status bar will prompt Move any Object. Click to choose the object then move it to the required location. Note that this command does not consider the selection state of objects, it simply moves the chosen object.
Drag	Move the chosen object and drag attached objects with it. After launching the command the Status bar will prompt Move any Object. Click to choose the object then move it to the required location. Connected track segments will remain attached; the end on the moving object will move with the object and the other end of the segment(s) will remain where it was. Note that tracks connected to a component will only drag if the Comp Drag option is set to Connected Tracks ( on the PCB Editor - General page of the Preferences dialog). This option is discussed in more detail below.
Component	Move the chosen component. After launching the command, the Status bar will prompt Moving Component. Click to choose the object then move it to the required location. How the connected tracks behave depends on the setting of the Comp Drag option on the PCB Editor - General page of the Preferences dialog. This is discussed in more detail below.
Re-Route	Re-route the chosen track segment. After launching the command, the Status bar prompts to Choose a Track. When you click on a track segment, you effectively break that segment into two. Move the cursor to position the new vertex where these two segments join. After placing the vertex, you will be positioning another vertex to fix the ends of two more segments, and so on. Right-click (or Esc) to stop rerouting this route; do this a second time to drop out of the command.
Break Track	Break an existing segment into two segments. This command behaves the same as the Re-route command except it does not repeat. After launching the command, the Status bar prompts to Choose a Track. When you click on a track segment, a vertex is added at the click location; move the mouse to position the vertex. Those segments will be released and the cross-hair cursor remains, indicating that you are still in Break Track mode. Continue to break other tracks or right-click (or Esc) to terminate the command. Note that this behavior can also be achieved interactively in the workspace without launching this command by clicking once to select a track segment, then click and hold on the center vertex to break the track. Position as required.
Drag Track End	Move an existing vertex (track end) to a new location. After launching the command, the Status bar prompts to Move any Object. Click anywhere on a track segment; the cursor will jump to the nearest end of that segment, which will then move with the cursor. Position the cursor in the required location and click to place.
Move / Resize Tracks	Freely move the end of a track segment. After launching the command, the Status bar prompts to Choose Track End Point. Click anywhere on a track segment; the cursor will jump to the nearest end of that segment, attaching it to the cursor. Move the cursor to move that end point and click to place. This behavior, where you can freely move the end of a single track segment, can also be achieved by clicking once to select a segment, then clicking and holding on an end vertext to freely move it.
Move Selection	Move selected objects. After launching this command, the Status bar will prompt to Move Selection. Click anywhere within the workspace to hold the selection set at that point then move the mouse to move the selection set to a new location. Note that the click that defines the hold point for the selection set will automatically be on grid unless you hover the mouse so that it snaps to an object hotspot (reference point), such as the center of a pad.
Move Selection by X, Y	Move the selected objects by a user-defined offset. After launching this command, the Get X /Y Offsets dialog will open. Enter the required offset values then click OK to move the selection set by that amount.
Rotate Selection	Rotate the selected objects by a user-defined rotation angle. After launching this command, the Rotation Angle dialog will open. Enter the required rotation in degrees then click OK. The Status bar will prompt to Select Reference Point; the selection set will rotate around the point where you click.
Flip Selection	Flip the selection set from the current side of the board to the other side. The selection set will be flipped along the X axis as if it were a single object, with the overall bounding rectangle of the set remaining in the same X, Y location in the workspace. Each object that is on a layer with a logical pair will be flipped and moved to the paired layer. For example, Top Layer objects flip to Bottom Layer, Top Solder to Bottom Solder, and the same for mechanical layers that have been defined as layer pairs.
Move Polygon Vertices	Interactively move the vertices of a polygon. After launching the command, the Status bar will first prompt to Choose a Polygon. After clicking on a polygon to choose it, the Status bar will then prompt to click to select a Handle (vertex) or an Edge. Note that this editing state can also be achieved by clicking once to select a polygon. There is more information about editing a polygonal-shaped object below.
Region Vertices	Interactively move the vertices of a solid region. After launching the command, the Status bar will first prompt to Choose a Region. After clicking on a region to choose it, the Status bar will then prompt to click to select a Handle (vertex) or an Edge. Note that this editing state can also be achieved by clicking once to select a region. There is more information about editing a polygonal-shaped object below.

Moving Components

Like any object, a component can be moved by clicking and holding. Alternatively, use the Component command from the Move menu.

How the Component is Held

Component footprints are typically designed with their origin (reference point) either at the geometric center of the component or the center of pad 1. During the component placement phase of the board design, it may be preferable to position the component based on pad 1 or perhaps a different pad. To enable this behavior, enable the Smart Component Snap option in the PCB Editor - General page of the Preferences dialog. When this option is enabled, instead of jumping to the reference point, the software will include pad centers as potential holding points and jump to the nearest point (reference point or pad center) when you click and hold. Position the cursor close to the pad by which you want to hold then click and hold.

Configure the Object Snap Options in the Preferences dialog.

How Connected Tracks Behave

The default behavior for tracks that are connected to a component is to not move the track ends when a component is moved. It is possible to drag the track ends with the moving component by setting the Comp Drag option to Connected Tracks (on the PCB Editor - General page of the Preferences dialog). Since dragging is not the default behavior when moving, to move a component and drag the connected track ends, you need to use either the Drag or the Component command from the Move menu.

Note that the software does not attempt to maintain 90/45 degree placement of track objects or prevent potential design rule violations while moving a component and dragging tracks. The PCB Editor includes excellent track sliding features. Use these to either tidy unorganized track segments or move the component without dragging and use the same sliding capabilities to modify the track segments after the component has been moved.

To tidy dragged tracks, click once to select the segment then click and hold the segment and slide it. The software will restore the 90/45 placement to the tracks.

Moving Track/Line Segments

Routing is traditionally placed so that all track segments are vertical, horizontal, or at 45 degrees. This is done to allow the most efficient use of space on the board. The PCB Editor includes sophisticated algorithms for moving track segments on the board so that the arrangement of the routing can be maintained.

This sliding of track segments can be invoked interactively either by clicking to first select the track segment then clicking and holding when the special cursor appears to slide the segment (as shown in the animation below), or by clicking and holding on a track segment and sliding it. This sliding behavior can be configured using the Dragging options in the PCB Editor - Interactive Routing page of the Preferences dialog. These options allow you to assign the Move action to a track, which is useful if you want to be able to freely move an individual track segment.

As well as supporting moving the segments in an individual net, the built-in push and shove algorithm allows multiple routes to be neatly moved in a single operation as shown in the animation below. Press the Shift+R shortcuts to cycle through the different interactive sliding modes: Push Obstacles, Hug and Push Obstacles, and Ignore Obstacles. The current mode is reported on the Status bar during sliding.

Click once to select the segment; when the special cursor appears, click and hold to slide the segment. Alternatively, click, hold and start sliding.

Reshaping an Existing Track Segment

Working in harmony with the segment sliding feature, you can also break, or more correctly, reshape an existing segment. To do this, click once to select the segment then hover the mouse over the center vertex. A special cursor will appear, indicating that the this segment can be reshaped. Click and hold; as you move the mouse, the software will automatically add new reshape segments, as shown in the images below.

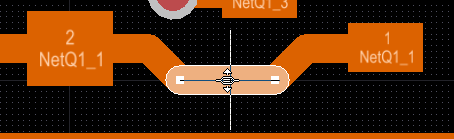

Hover the mouse over the center vertex to show the reshape cursor,

Click and hold, then drag to reshape the segment,

Release to complete the reshape process.

An existing segment can be reshaped if required.

Moving Polygonal Object Vertices

There are some differences between the various polygonal objects. Refer to the individual object for more information on reshaping a polygonal object.
