Harness Connector Type Properties

Created: April 08, 2021 | Updated: April 08, 2021 | Applies to version: 21

This document is no longer available beyond version 21.0. Information can now be found here: Harness Connector Type Properties for version 25



Parent page: Harness Connector Type

Schematic Editor object properties are definable options that specify the visual style, content and behavior of the placed object. The property settings for each type of object are defined in two different ways:

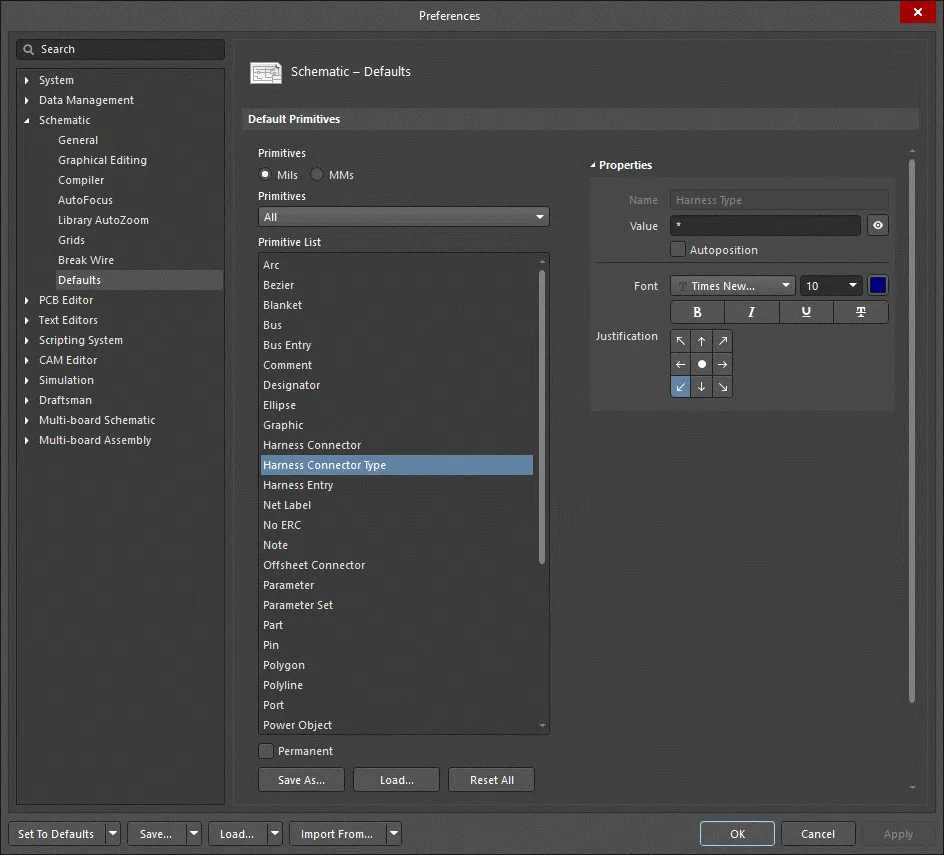

  • Pre-placement settings – most Harness Connector Type object properties, or those that can logically be pre-defined, are available as editable default settings on the Schematic - Defaults page of the Preferences dialog (access from the  button at the top-right of the design space). Select the object in the Primitive List to reveal its options on the right.

  • Post-placement settings – all Harness Connector Type object properties are available for editing in the Parameter dialog Properties panel when a Harness Connector Type is selected in the design space.



If the Double Click Runs Interactive Properties option is disabled (default) on the Schematic - Graphical Editing page of the Preferences dialog, when the primitive is double-clicked or you right-click on a selected primitive then choose Properties, the dialog will open. When the Double Click Runs Interactive Properties option is enabled, the Properties panel will open.
While the options are the same in the dialog and the panel, the order and placement of the options may differ slightly.
In the below properties listing, options that are not available as default settings in the Preferences dialog are noted as "Properties panel only".

Location (Properties panel only)

  • (X/Y)
    • X (first field) - the current X (horizontal) coordinate of the reference point of the object, relative to the current design space origin. Edit to change the X position of the object. The value can be entered in either metric or imperial; include the units when entering a value whose units are not the current default.
    • Y (second field) - The current Y (vertical) coordinate of the reference point of the object, relative to the current origin. Edit to change the Y position of the object. The value can be entered in either metric or imperial; include the units when entering a value whose units are not the current default.
  • Rotation - use the drop-down to select the rotation.

Properties

  • Harness Connector - the harness connector associated with this object.
  • Name - displays the name.
  • Value - displays the actual filename text. Use the eye icon to show/hide the Value.​​
  • Autoposition - check to enable auto-positioning, meaning that the text will remain in the chosen position as the component is moved and rotated.
  • Font - use the controls to configure the font, font size, color, and special settings such as bold and underlines.
  • Justification - select the desired justification of the text.
